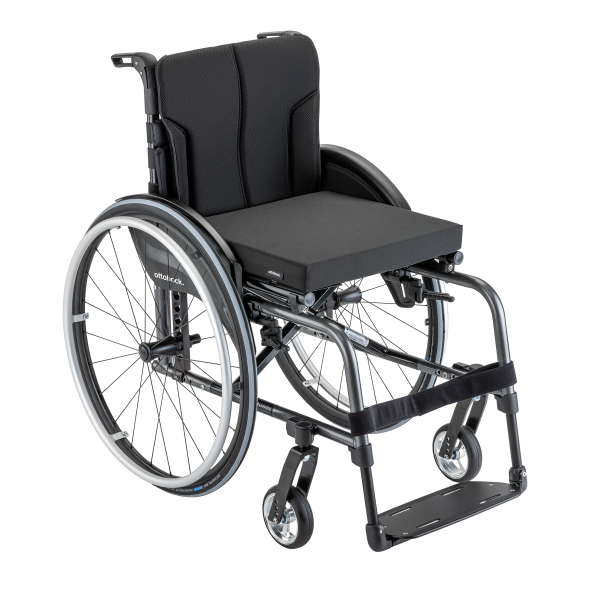

Motus CS

SKU: MOVUS_CS

Be the first to review this product

Quick Overview

This model from the Motus series is the right choice for users who also need to use the versatile wheelchair in confined spaces. The CS is especially manoeuvrable thanks to its compact design. The front frame is closed, and the continuous foot plate is made of aluminium. The overall structure ensures excellent wheelchair stability at a low weight. Numerous options and adjustment possibilities make the Motus CS a versatile all-rounder.

Availability: In stock

Quote Now

Thanks for your quote

Thanks for your quote. We will be in touch as soon as possible.

Details

Product features
• Configurable adaptive folding wheelchair
• Closed front frame
• Integrated foot support holders
• Drive wheels with quick-release axles
• Drive wheel adapter adjustable in 48 positions
• Approved for use as a seat in vehicles for transporting persons with reduced mobility

The CV and CS models in the Motus series score points for outstanding functionality, high reliability and practical, detailed solutions.
Both models can be custom configured and equipped with a wide variety of options, offering each user the greatest possible benefit for their needs. Thanks to proven, reliable technology, these all-rounders are straightforward and fast to configure.

Breathable material
Users benefit from the outstanding characteristics of the integrated 4D spacer fabric in the back support pad. The innovative material circulates air for a  pleasant microclimate on the skin. The base model also includes adjustable back support upholstery, which can be individually adapted at any time by means of hook-and-loop straps.

Folding technology

The internal crossbrace fulfills a central function. Thanks to favourable positioning in the frame, the CV and CS models can be folded reliably, without wear and tear or long lever paths.

Drive wheel adapter with tracking correction

With their sophisticated drive wheel adapters, the CV and CS offer 48 different adjustment possibilities for the drive wheel position: Each wheelchair can be configured to be compact, manoeuvrable, stable or tip-resistant. Tracking correction is also helpful here, ensuring smooth-running driving characteristics even with extreme seat inclinations and wheel camber.

Seat height adapter
The seat height can be adjusted up or down with the seat height adapter between the frame tube and caster fork retainer. This also increases the track width, which
is advantageous with a low seat height, for instance when using the feet to propel the wheelchair.

Tray
An optional full or half tray can complement treatment with the wheelchair as an additional supporting surface or to help achieve therapeutic objectives.

Leg supports with adjustable foot plates

The CV model comes standard with swing-away, removable leg supports, available with a segmented or continuous foot plate. All foot plates are also angle-adjustable and can be flipped up.

Foot support holders
Swing-away foot support holders can be swung out or in at any time and removed entirely when needed. This means standing transfers and driving close to furniture
are no problem.


Back support tube
Adjustable back support tubes permit subsequent changes to the back support height and also offer a high level of overall stability. Also optionally available
with 30° back support angle adjustment.

Leg and foot supports
The Motus CS model was made to be a very compact, sporty solution. Integrated in the front frame, the foot support is designed as an angle-adjustable, continuous
light metal foot plate. It flips up easily for folding.

Specifications
