Range of Depth Adjustment Available depth adjustment Size 1: 26 mm Size 2: 62 mm Size 3: 86 mm

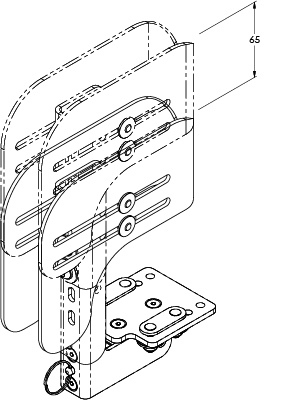

Range of Height Adjustment All sizes have 65 mm of height adjustment

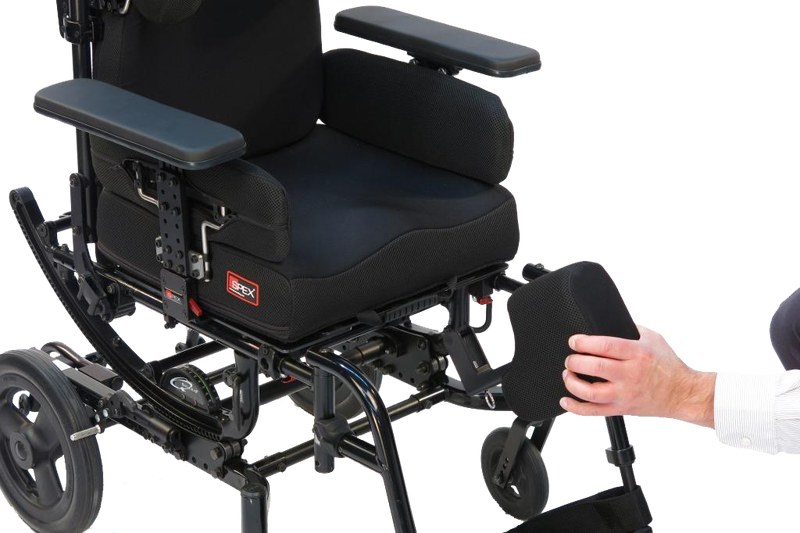

Unimpeded frontal transfers Can be pulled off. Pull-off feature can be locked with a bolt if not required.
Unimpeded lateral transfers Spex Medial Thigh Support flips down.

Clinical

• The medial thigh support should be used with clients who experience a variety of movement disorders, fluctuating muscle tone, spasticity or contractures.
• It assists to align the heads of the femurs with the acetabulum providing symmetrical hip abduction for proper posture.
• Abduction allows equal weight bearing through both ischial tuberosities and thighs, thus permitting better pressure distribution.
• Provides a wider, more stable support base for the upper body while limiting contractures and deformities that could interfere with function.
• In cases of hip dysplasia, luxation or dislocation it provides comfort and reduces pain.
• Not to be used as a way to prevent or limit forward sliding. The pommel should be installed clear of the groin area.

Functional

• Depth adjustable convenience combined with flip down hardware.
• Easy access release hardware.
• Huge height range for high profile cushions.
• Can be mounted to a seat pan.

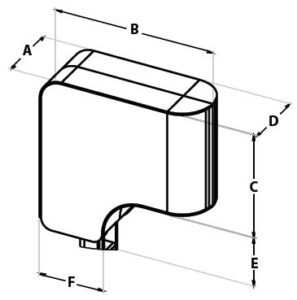

Specifications

Size	1	2	3	Diagram
A (mm)	60	60	60
B (mm)	145	155	185
C (mm)	95	100	105
D (mm)	40	60	60
E (mm)	40	50	60
F(mm)	65	65	75
Height Adjustment	65
Depth Adjustment	26	62	86

Customisations

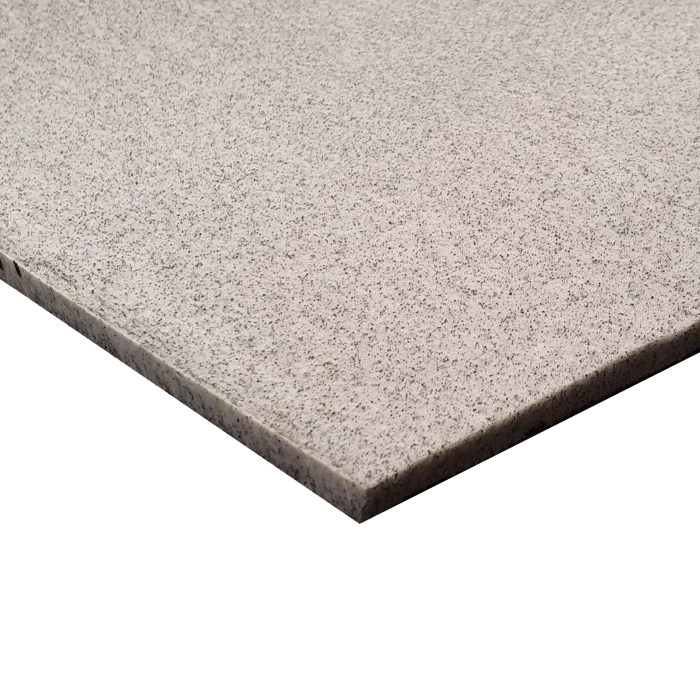

1/2" Pressure-relieving foam overlay
1/2" Gel-Foam Overlay
Custom Fabric
