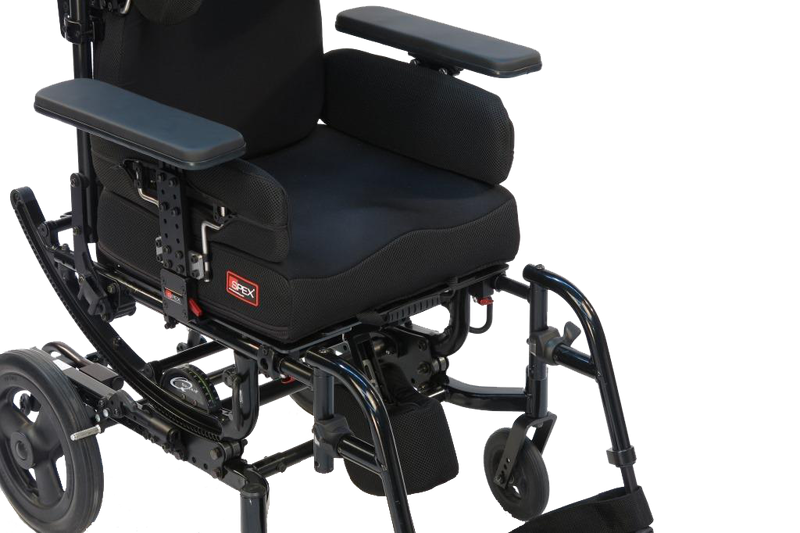

Unimpeded lateral transfers Axial Medial Thigh Support flips down
Unimpeded frontal transfers Can be pulled off. Pull-off feature can be locked with a bolt if not required.

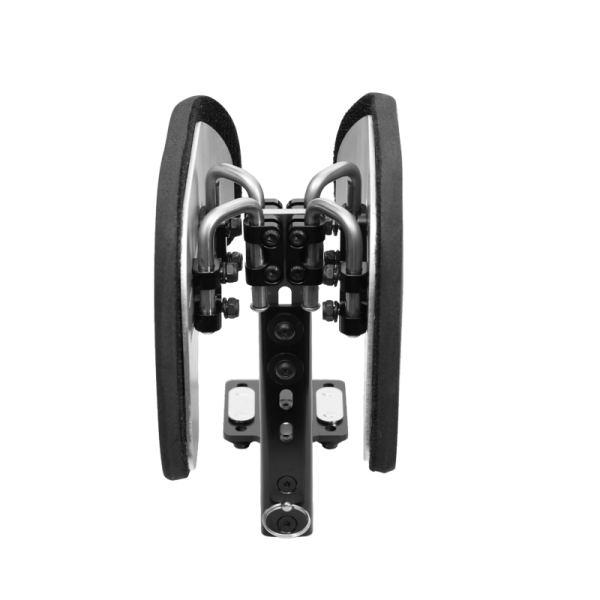

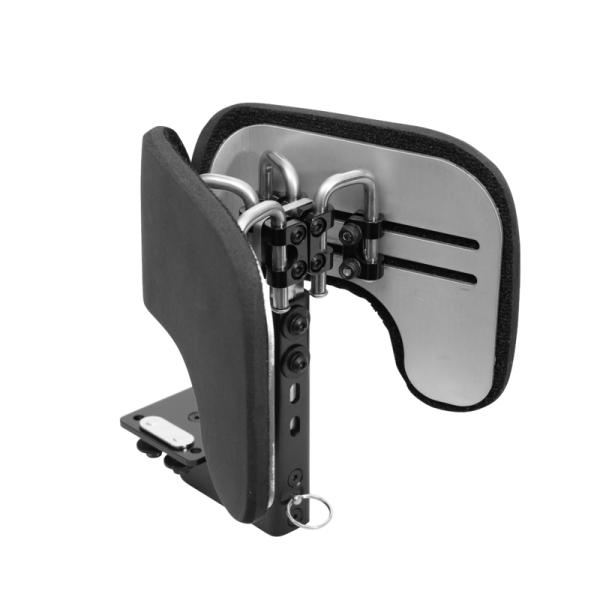

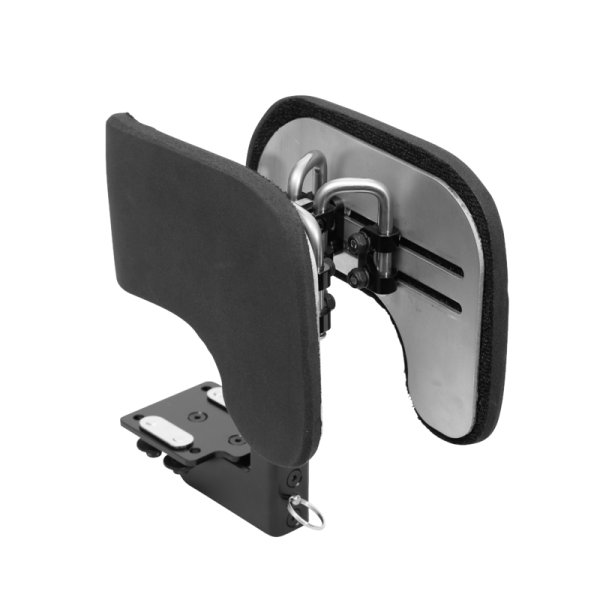

Offset and swivel To accommodate asymmetric positions. Unique expansion fabric cover allows multiple adjustments.

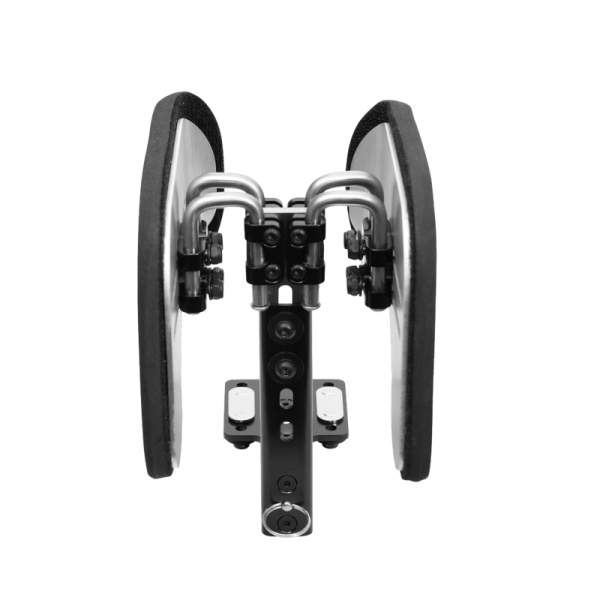

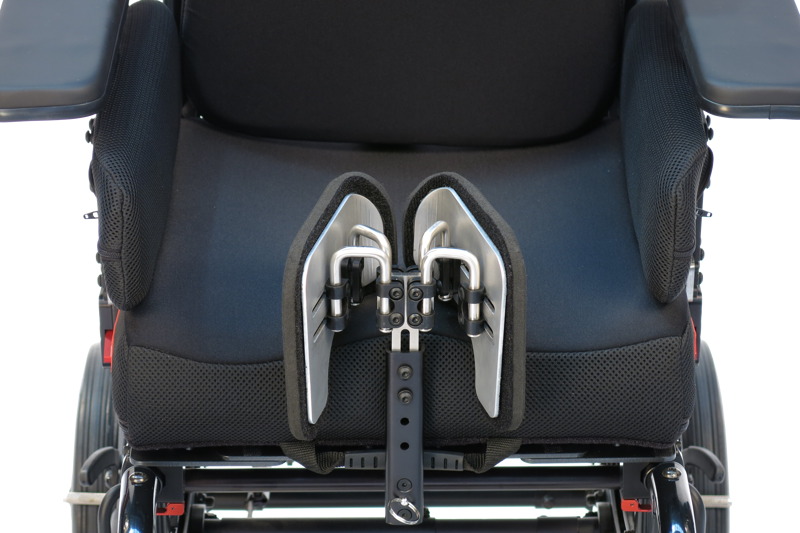

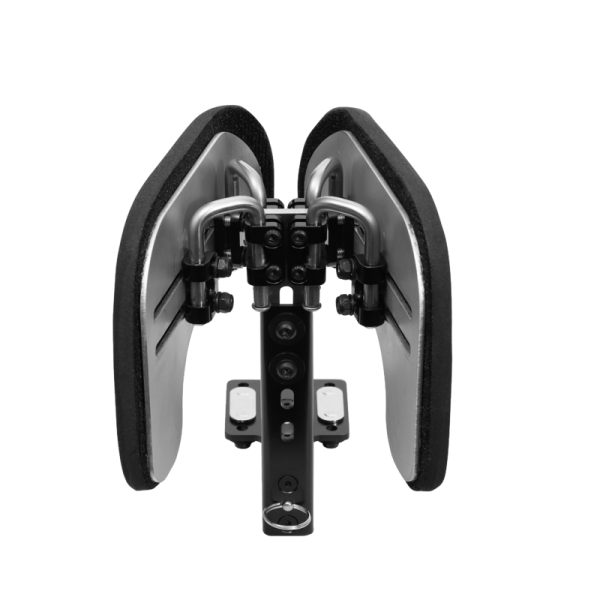

Huge adjustment range Shown without cover. Unique expansion fabric cover allows multiple adjustments.

Clinical

• Should be used with clients who experience a variety of movement disorders, fluctuating muscle tone, spasticity or contractures
• Assists to align the heads of the femurs with the acetabulum providing symmetrical hip abduction for proper posture
• Abduction allows equal weight bearing through both ischial turberosities and thighs, thus permitting better pressure distribution
• Provides a wider, more stable support base for the upper body while limiting contractures and deformities that could interfere with function
• In hip dysplasia cases, luxation or dislocation; provides comfort & reduces pain
• Not to be used as a way to prevent or limit forward sliding. Should be installed clear of the groin area

Functional

• Depth adjustable convenience combined with flip down hardware
• Easy access release hardware which can be mounted to a seat pan
• Huge height range for high profile cushions
• 3 sizes available

Specifications

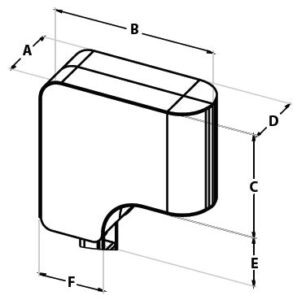

Size	1	2	3	Diagram
A (mm)	70 - 140		70 - 160
B (mm)	145	155	185
C (mm)	95	100	105
D (mm)	50 - 120	60 - 140	60 - 140
E (mm)	40	50	60
F (mm)	65	65	75
Height Adjustment (mm)	61	61	61
Depth Adjustment (mm)	13	13	13

Customisations

1/2" Pressure-relieving foam overlay
1/2" Gel-Foam Overlay
Custom Fabric
