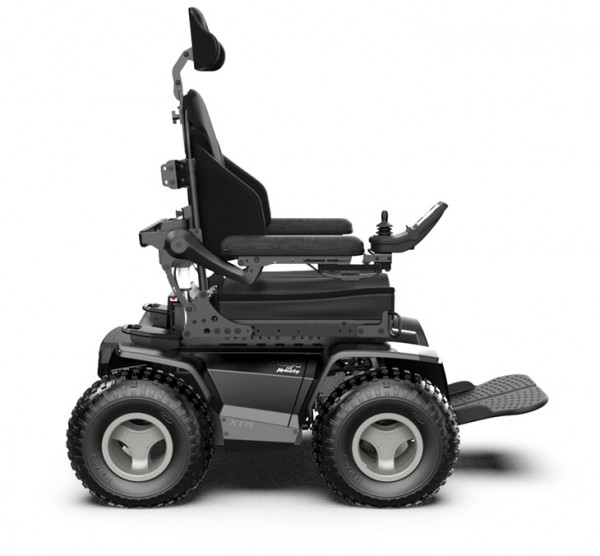

XT4

SKU: XT4

Be the first to review this product

Quick Overview

The XT4 takes off-road accessibility to the next level. Discover just how capable you are to push new boundaries outdoors

Availability: In stock

Quote Now

Thanks for your quote

Thanks for your quote. We will be in touch as soon as possible.

Details

Push your outdoor boundaries further than ever before

Step up to driving the world’s most advanced 4×4 powerchair

The XT4 builds on Magic Mobility’s unrivalled experience in delivering extreme off-road 4×4 powerchair performance by offering even greater stability, range, comfort and control than ever before.

The XT4’s patented front and rear suspension, unique servo-powered steering and high-capacity batteries combine with the proven capabilities of knobby, low pressure tyres driven by unstoppable torque to make it the ultimate chair for outdoor adventurers.

  • 4×4 tyres and torque
  • Smooth ride, superior traction with front and rear suspension
  • Total control via precise, servo powered steering
  • Go further with massive batteries as standard
  • Sleek, contemporary styling and modern aesthetic
  • Modular seating fit and functionality, common to all bases
  • Seat lift and tilt 12" (300mm)/45°
  • 95-180° legrest elevation
  • Tilt 50°
  • Seat lift 12" (300mm)
  • 95-160° Recline
  • Unstoppabel Off-road Traction
  • Superior Patented Suspension
  • Servo powered steering for precise control
  • Colour options and styling
  • Australian Made

FeatureSpecification
*Length of base 1000mm / 39" (*legrest choice and seating size may increase chair length/width)
*Width of base 700mm / 27.5"
Floor to top of seat pan height 480mm / 19"
Ground Clearance 100mm / 4"
User weight limit 182kg / 400lb fixed frame, 160kg / 350lbs with lift & tilt
Top speed 10kph / 6.2mph
Top speed at full seat elevation 5kph / 3.1mph
Turning Radius 1410mm / 55.5"
Minimum chair weight (no power lift) 185kg / 408lb
Standard chair weight (with power lif, tilt, recline & legrests) 220kg / 485lb
Motors 4 x 700W, Gear In Line
Motor IP rating 54 (splash resistant but not waterproof) The wheelchair has electric motors and must not be driven through water, into rivers, creeks or the sea.
Wheels Off-road pneumatic 145 / 70-6 black
Batteries 115Ah (C20)
Controller R-Net controller with LCD display or LED option
Legrest options Centre post, manual elevating, power/manual elevating swingaway, centre mount power elevating
Backrest and seat Adjustable seat pan (12”/305mm deep to 24”/610mm wide) to fit MPS / Rehab or aftermarket seating options
Colours Three colours standard
Tie down points Crash test compliant

Unstoppable off-road traction
Each of the XT4’s four knobby off-road tyres are driven by high efficiency, high-torque 700 Watt motors. Power easily through mud, sand, snow or over kerbs and other obstacles. Fitted with two massive 115 Ahr batteries as standard, the XT4 will take you further off-road than ever before.

Superior patented suspension
Front and rear wheels are mounted on their own pivoting arms that adjust independently to follow the contours of the terrain. This helps keep all four wheels on the ground to deliver more traction, a smoother ride, greater stability and more control across even the most extreme off-road terrains.

Servo powered steering for precise control
The XT4 steers using a combination of differential wheel speeds and an industry-leading servo steering module. Even on slippery or low traction surfaces, the chair’s intuitive steering delivers a feeling of reliability, responsiveness and control, both in forward and reverse.

Colour options and styling
Choose from two vibrant colours or sleek Midnight Black. Aerodynamically styled injection moulded body panels are easily detached for maintenance or replacement.

Proudly Australian made
Since 1994, we have been designing, engineering and manufacturing highly robust, all terrain powerchairs in Melbourne, Australia, so that active users can experience a world that’s not flat.

Splash resistant (not waterproof)
Please remember, the wheelchair has electric motors and must not be driven through water, into rivers, creeks or the sea. Magic Mobility wheelchairs meet Australian Standards 3696 and ISO7176.
