Alber E-fix

SKU: Alber E-fix

Be the first to review this product

Quick Overview

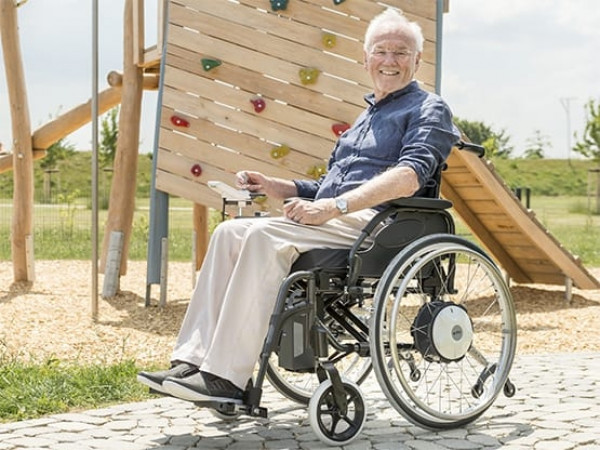

Turn your manual wheelchair into a compact electric wheelchair with the Alber E-fix add-on drive. The E-fix drive can be individually programmed and can therefore be adapted perfectly to your personal needs. The E-fix add-on drive is the simple way to increase your freedom of movement. The E-fix also allows you to cover greater distances and handle slopes effortlessly.
$0.00

Availability: In stock

Quote Now



Thanks for your quote

Thanks for your quote. We will be in touch as soon as possible.

Details

Can I use e-fix on my wheelchair?
The e-fix can be used with most models of wheelchairs. Brackets to attach the drive wheels are fastened onto the frame of the wheelchair. The manual wheels for your wheelchair can normally still be used.

How fast does the e-fix travel?
You can continuously vary the maximum speed of the e-fix between 0.5 and 6 km/h (0.31 to 3.7 mph). Thus you can find your optimum travelling speed in safety. The  handling can be adapted in detail by your dealer to suit your individual needs.

How many versions of e-fix are there?
The e-fix has been designed for people up to a maximum weight of 120 kg (264 lbs) The optionally available reinforced wheels with a higher rating can be used with people up to a maximum weight of 160 kg (352 lbs). The standard version of the e-fix has wheels of size 22" or 24".


Will e-fix help my attendant too?
Yes! The holder that is available as an accessory allows the control unit to be installed on the push handles of the wheelchair. The optional intuitive attendant control makes it easier for the attendant to push the chair.

How far can I travel on a single battery charge?
Depending on the weight of the person, the sort of terrain, the temperature,
the wheelchair settings and the surface of the ground, one charging
of the battery is good for up to 16 km (10 miles). You can increase
the range up to 20 km (12.4 miles) with the optionally available high
capacitybattery pack. Alternatively, an additional spare battery is another
simple solution to increase the range.

How steep a ramp or gradient can the e-fix cope with?
The e-fix can manage gradients and slopes of up to 20 %, depending on
the wheelchair settings, the weight of the occupant and the ground.**

Can the e-fix also be taken into a car?
Yes! The modular structure makes it possible. All the e-fix components can be easily removed from the wheelchair without needing any tools, and hence save space when loaded into the back of any car. Your wheelchair can still be folded up.

How much does the e-fix weigh?
Drive wheels 7.9 kg / 17.40 lbs each
Battery pack 2.1 kg / 4.63 lbs
Control unit 0.6 kg / 1.32 lbs
Interface 0.8 kg / 1.76 lbs
Total weight 19.3 kg / 42.51 lbs

* Weights may vary depending on the wheelchair, accessories and the suitability
of the person operating the device.
** gradients and slopes of up to 20 % possible, depending on
the model of e-fix and wheelchair

User Weight

E-fix E35 - Max. user weight: 120 kg* 160 kg*
E-fix E36 - Max. total weight: 170 kg* 210 kg*
(incl. e-fix, wheelchair, wheelchair driver)

Additional Information

Contour Depth No
Drive No
Seat Size No
Maximum Obstacle Height No
Product Weight No
Size No
Seat Width Range (inchs) No
Brand Alber
Range Up to 20 Km
Gross Weight (KG) 18.9kg
Max User Weight No
Motor Type No
Max Speed (KM/H) 6 Kph
Safe Working Load No
