Configuration

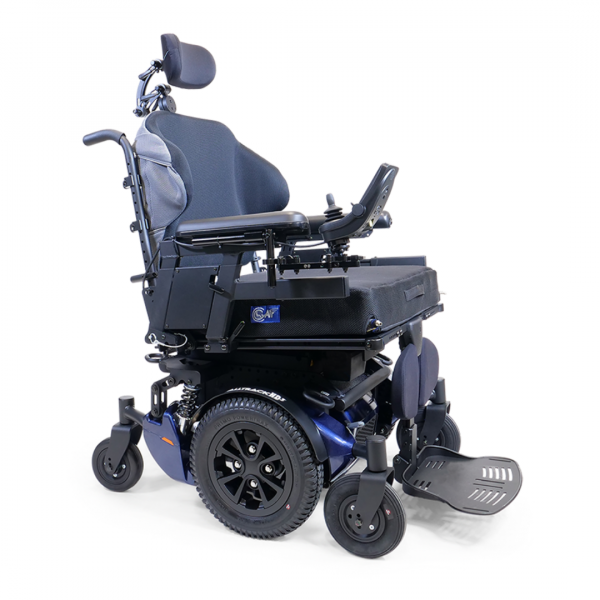

Bariatric Mid-wheel drive – Very Heavy-Duty (Alltrack HD3)

Suspension system

Patented Dual-Action Suspension: Fully independent 6-wheel interactive suspension with vertical shock absorption

Ground clearance1

3.5” (90 mm)

Base width2

27.375” (695 mm)

Base length2

35.125” (890 mm)

Base turning radius

20.5” (520 mm)

Weight capacity

Up to 550 lb (250 kg)

4-Pole motor options

5.4 mph (9 km/h)

Transit option (Unoccupied)

4-point tie-down brackets (Standard)

Battery type

Two 12 V, deep cycle Gel cell Group 24 (70 Ah)

Battery charger

8 A, off board

Electronics

PG Drives VR2 (non-expandable 90 A) or R-net (expandable 90 A or 120 A)

Assistive driving package

Available with Smart-Track technology

Specialty controls

Compatible with Switch-It, Stealth, ASL or MO-VIS as well as other current systems

Seat width range

Adjustable from 19” to 28” (485 mm to 710 mm) wide (Custom seat sizes are available)

Power seating options³

Bariatric CG Power Tilt, Power Recline with Mechanical Shear Reduction (MSR), Combination Power Tilt and Recline with MSR, Very HD Power Center Mount Elevating & Articulating Foot Platform, HD Independent Power Elevating & Articulating Legrests

Seat to floor height range (with power tilt)

17” to 19” (430 mm to 485 mm)

Components weights4

For a wide base width 27.375”:133 lb (60 kg) Batteries: Group 24: 2 x 54 lb (24.5 kg)

Drive wheel diameter

14” (355 mm)

Caster wheel diameter

8” (205 mm)
