The most versatile JAY wheelchair backrest The JAY® J3® wheelchair back range offers a multitude of different widths, heights, and contoured depth back shells to suit the clients individual positional needs. Each backrest is lightweight and adjustable, with numerous hardware choices allowing for easy installation.

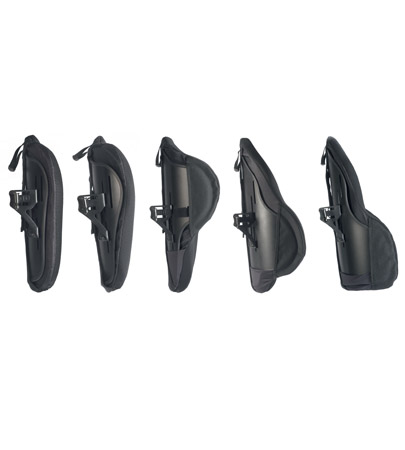

Five Contour Shapes
The Jay J3's solid shell is available in five contour shapes to provide posterior and lateral pelvic and lateral thoracic stability to wheelchair clients with varying postures and functional needs.
- Posterior (PA) - 2.2" of lateral thoracic support
- Posterior Lateral (PL) - 3" of lateral thoracic support
- Posterior Deep (PD) - 6" of lateral support
- Posterior Deep Lateral (PDL) - 6" of lateral thoracic support
- Posterior Deep Contour (PDC) - 6" of lateral pelvic support
Four Support Height Levels
The JAY J3 wheelchair back is available in four different height levels to provide support for clients with wide ranges of torso heights and accomodate different levels of injury.
- Lower Thoracic - 6.5" to 9.5"
- Mid Thoracic - 12" to 15"
- Upper Thoracic - 16.5" to 19.5"
- Shoulder - 21" to 24"

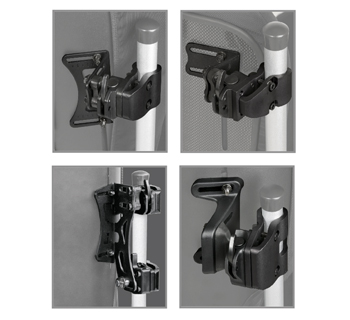

Four Hardware Options
The J3 Backrest offers four hardware options to accommodate a span of priorities and wheelchair configurations.
- SH - Easy to install, 2-point, quick-release hardware that allows for numerous attaching positions
- RH - 25% lighter than SH hardware and optimized for ultra lightweight wheelchairs without compromising adjustability
- TH - 2-point, quick-release hardware optimized for tilt-in-space wheelchairs, with a lengthened attachment pin and 226kgs weight capacity
- 4-Point - Quick-release hardware that withstands greater force by distributing across four mounting locations

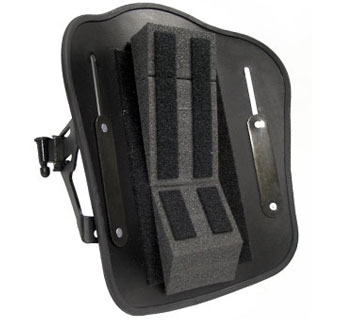

Spine-Align: Let the Back Fit the User
Fitting the back to the user not the user to the back is the goal of the Spine-Align Posture Conforming system. This is accomplished by combining a wide range of individual foam components to create unique shapes that optimize postural support, evenly distribute pressure, and maximize function. Velcro strips attach to each shape so they can be placed into hundreds of configurations. The flexibility of the system is boundless.
| Contour: | Shallow, Mid Contour, Deep Contour, Mid Deep Contour and Posterior Deep Contour |
| Support Level: | Low Thoracic, Mid Thoracic, Upper Thoracic, Shoulder High |
| Width: | 12" to 26" |
| Height: | Lower Thoracic: 6.5", 8", 9.5" / Mid Thoracic: 12", 13.5", 15" / Upper Thoracic: 16.5", 18", 19.5" / Shoulder Height: 21", 22.5", 24" |
| Cover Type: | Air Exchange / Microclimatic |
| Max. User Weight: | 12" to 20" widths: 136kgs / 22" to 26" widths: 226kgs |
Additional Information
| Contour Depth | No |
|---|---|
| Drive | No |
| Seat Size | No |
| Maximum Obstacle Height | No |
| Product Weight | No |
| Size | No |
| Seat Width Range (inchs) | No |
| Brand | No |
| Range | No |
| Gross Weight (KG) | No |
| Max User Weight | No |
| Motor Type | No |
| Max Speed (KM/H) | No |
| Safe Working Load | No |
