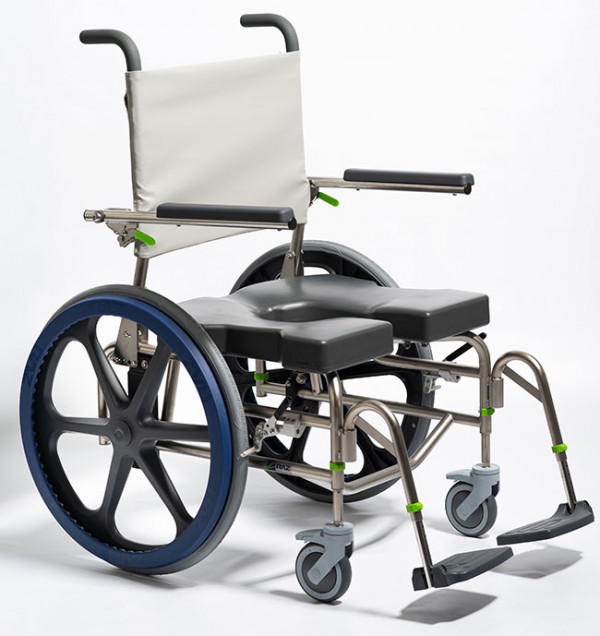

Raz-SP600 Standard Features

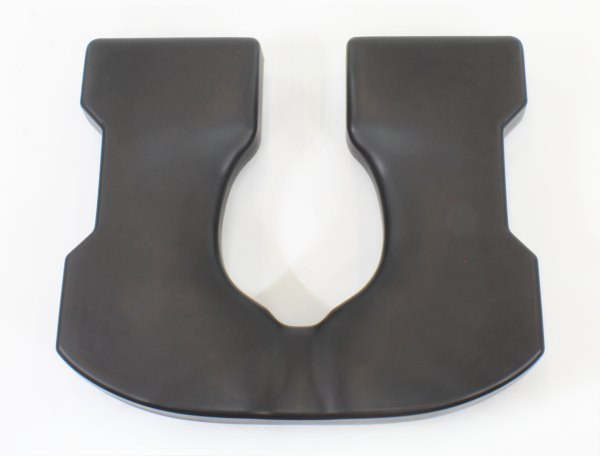

Molded Seats

• contoured for pressure reduction and pelvic stability
• soft integral-skin foam for comfort and durability
• available with an open front for access
• 2 sizes: 23”W x 18”D, 26″W x 18″D

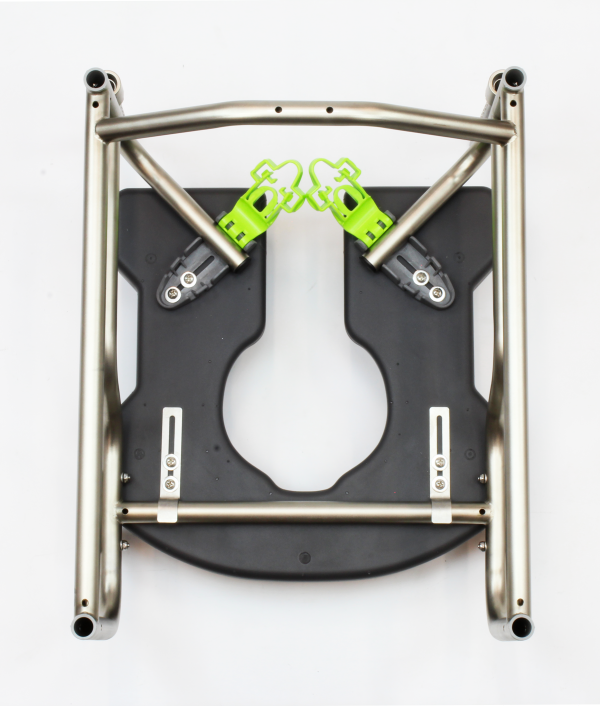

Ischial Pelvic Alignment System

• provides 2” of fore/aft adjustment so the seat can be aligned with the pelvis
• allows centering of the aperture (opening) around the users’ ITs
• seat locks in place for transfers
• removes easily for cleaning

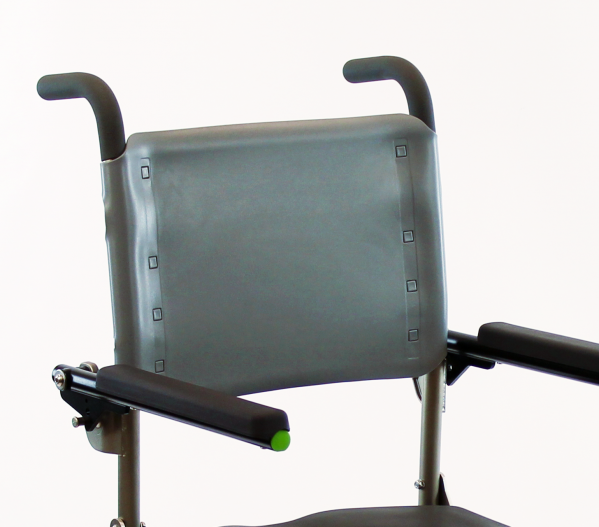

Multi-Position Back

• Includes 20” high back upholstery
• Can be set at 90 degrees or 95 degrees
• Flip-back arms (optional locking)
• Can be position fore/aft on frame so that client’s center of mass can be optimally position in the chair

Adjustable Footrests

• removable for transfers and cleaning
• swing in and out easily
• flip-up footplate
• adjust for leg length without tools
• available in regular length 16″-20½” and extended length 18″-22½”

Telescoping Caster Extensions

• provide 4” of seat height adjustment without the use of tools
• dropped front frame tube improves access over standard toilet bowls
• solid stainless steel caster extensions for heavy-duty use

Commode Pan

• Injection-molded pan is designed for function
• Includes a lid for splash and odor control
• Wide handle angled at 45 degrees provides better ergonomics
• Sloped front of pan moves contents toward the handle to reduce offset load, thereby making it easier to carry
• Receiver brackets under seat are visible from the rear of the chair, making it easier to slide the pan into place
• Fits in a standard autoclave and Arjo Tornado Washer
