Allegro Alto 200

SKU: C-ALTO01ELS

Quick Overview

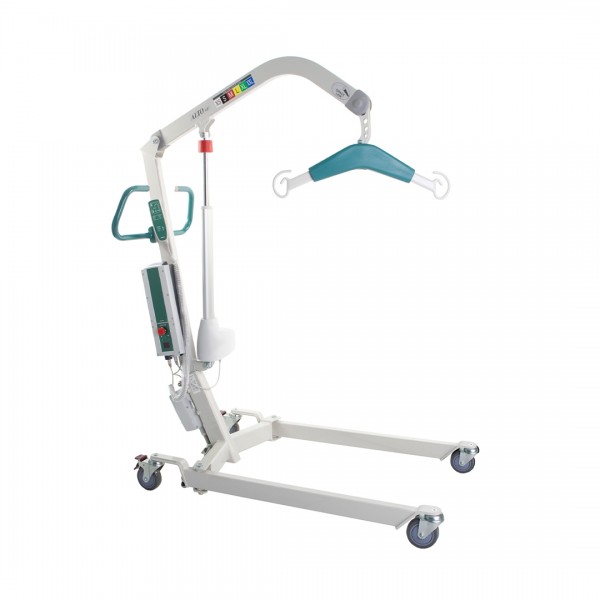

ALTO Lift™ MkII 200: A medium sized heavy duty mobile patient lifting hoist with a safe working load of 200kg and a compact ergonomic design.

ALTO Lift™ MkII 200, whilst being compact, provides superior patient lift space through the use of

SPACE LINKTM technology. ALTO Lift™ MkII 200 is the lifter of choice for institutional use or home care where a high capacity lift is required.

Availability: In stock

Quote Now

Thanks for your quote

Thanks for your quote. We will be in touch as soon as possible.

Details

ALTO Lift 200 Specifications
Safe Working Load - 200kg
Base Length -1150mm
External Base Width Closed - 700mm
External Base Width Open - 1130mm
Internal Base Width Closed- 600mm
Internal Base Width Open - 1030mm
Base Width Adjustment - Electric
Under Bed Clearance - 130mm
Minimum Height Yoke - 300mm
Maximum Height Yoke -1920mm
Average Lift Range - 1620mm ( with general purpose sling large)
Lifter Weight - 46kg
Minimum Storage Height - 1350mm
Under Base Height - 55mm
Maximum Hoist Reach - 1060mm
Minimum Hoist Reach - 610mm
Hoist Reach at Maximum Height - 515mm
Mass of Heaviest Part - 24kg (Mast assembly
