Details
Raz-SP Standard Features

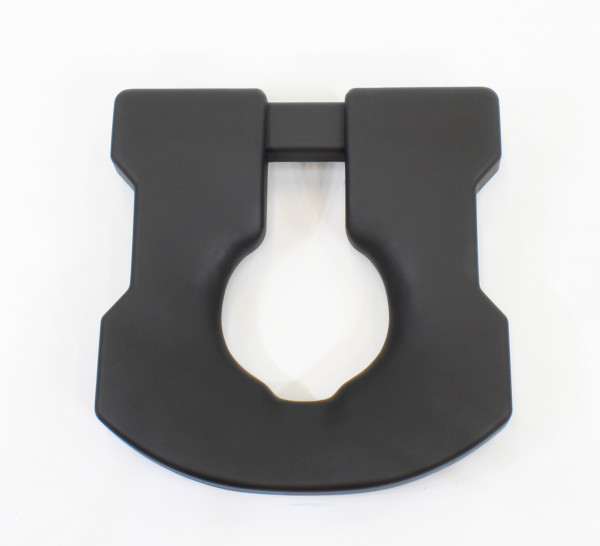

Moulded Seat
contoured for pressure reduction and pelvic stability
soft integral-skin foam for comfort and durability
available with open or bridged front
available sizes: 18″Wx16″D, 18″Wx19″D
Ischial Pelvic Alignment System
provides 2” of fore/aft adjustment so the seat can be aligned with the pelvis
allows centering of the aperture (opening) around the users’ ITs
seat locks in place for transfers
removes easily for cleaning
optional spacers for anterior or posterior seat angle adjustment [Z491]

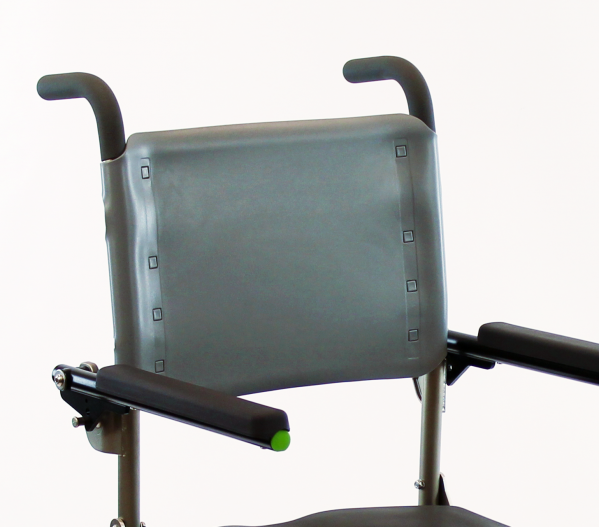

Fixed Back
includes adjustable tension fabric back upholstery
provides flip-up angle adjustable armrests
available in 17″ and 20″ back heights
locking armrest upgrade available [Z710]
Adjustable Footrests
removable for transfers and cleaning
swing in and out easily
flip-up footplate
adjust for leg length without tools
available in regular length 16″-20½” and extended length 18″-22½”
Tension-Adjustable Back Support Fabric
polyester fabric for durability and comfort against skin
provides individualized trunk support for optimal positioning and comfort
removable for machine washing
available in 17″ and 20″ back heights

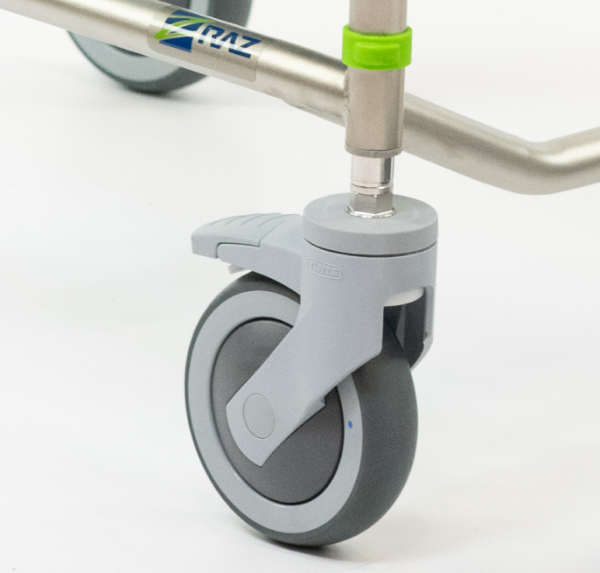

Telescoping Caster Extensions
provide 4″ of seat height adjustment without the use of tools
dropped front frame tube improves access over standard toilet bowls

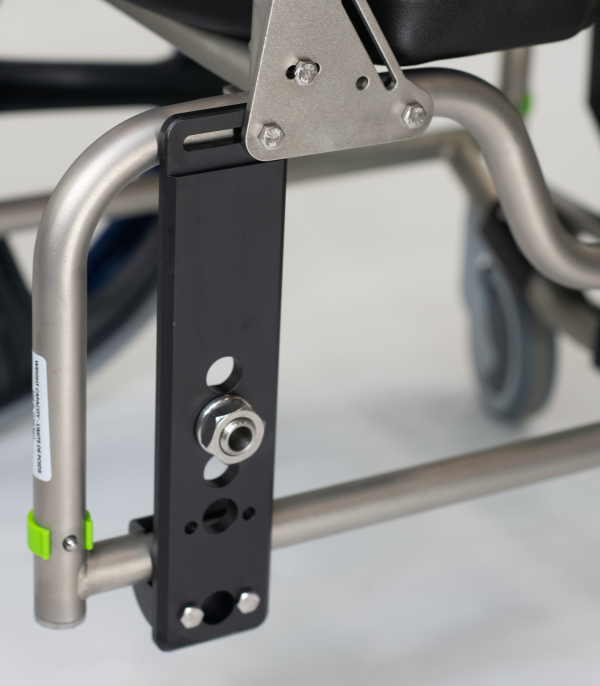

Multi-Position Axle Plates
provide up to 4″ of vertical seat height and 1.5″ of horizontal adjustment for optimum user / toilet bowl access
allow use of 22″ or optional 24″ rear wheels

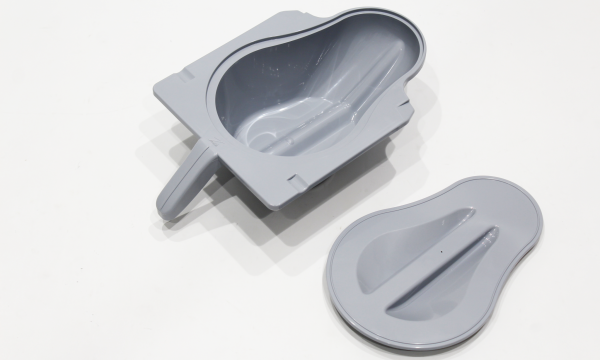

Commode Pan
Injection-molded pan is designed for function
Includes a lid for splash and odor control
Wide handle angled at 45 degrees provides better ergonomics
Sloped front of pan moves contents toward the handle to reduce offset load, thereby making it easier to carry
Receiver brackets under seat are visible from the rear of the chair, making it easier to slide the pan into place
Fits in a standard autoclave and Arjo Tornado Washer
