Raz-AP Standard Features

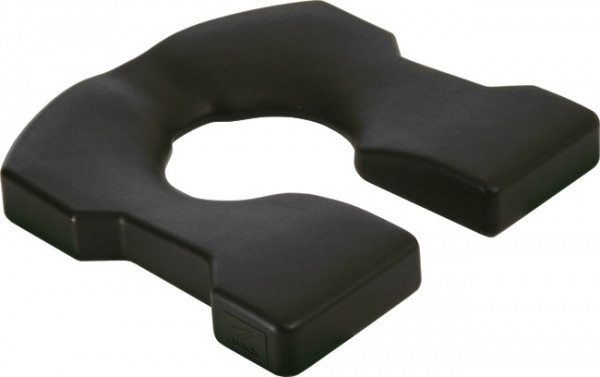

Moulded Seat

• contoured for pressure reduction and pelvic stability
• soft integral-skin foam for comfort and durability
• available with open or bridged front
• available sizes: 18″Wx16″D, 18″Wx19″D

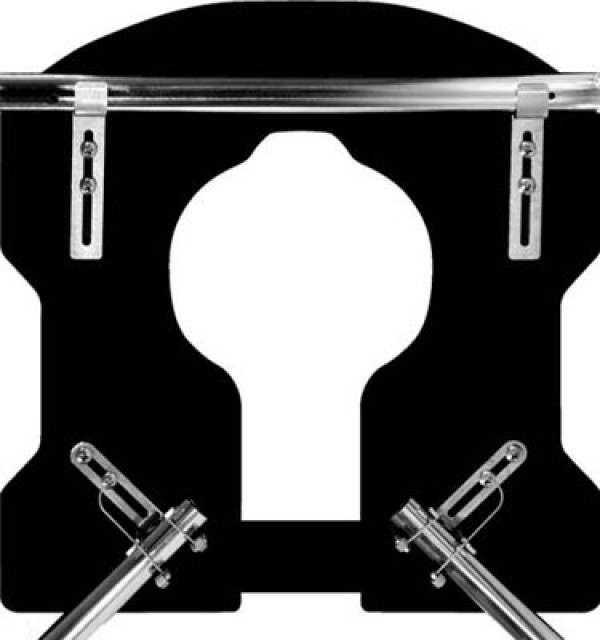

Ischial Pelvic Alignment System

• provides 2” of fore/aft adjustment so the seat can be aligned with the pelvis
• allows centering of the aperture (opening) around the users’ ITs
• seat locks in place for transfers
• removes easily for cleaning
• optional spacers for anterior or posterior seat angle adjustment [Z491]

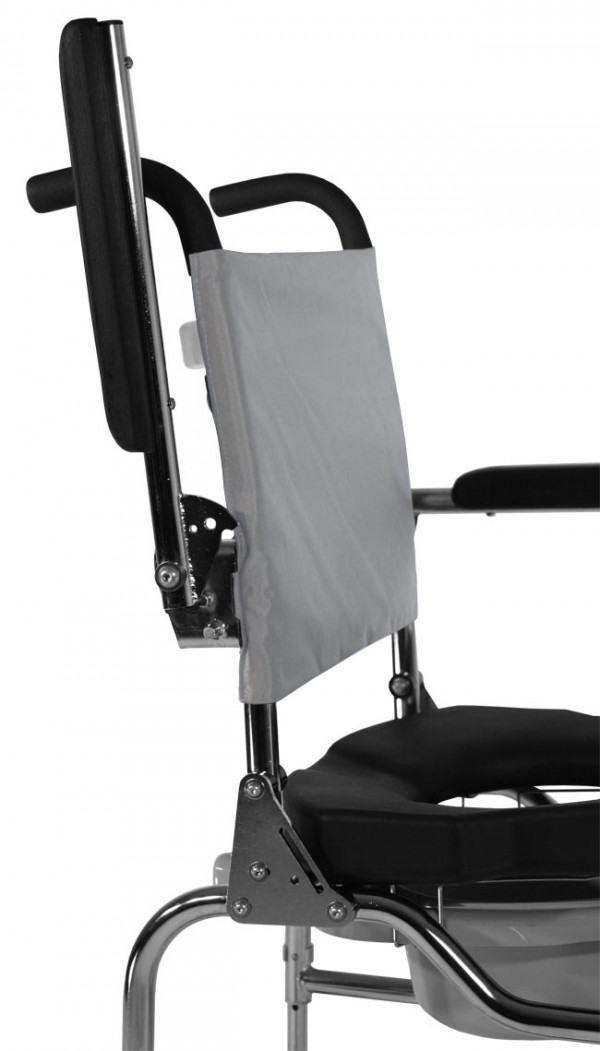

Fixed Back

• includes adjustable tension fabric back upholstery
• provides flip-up angle adjustable armrests
• available in 17″ and 20″ back heights
• locking armrest upgrade available [Z710]

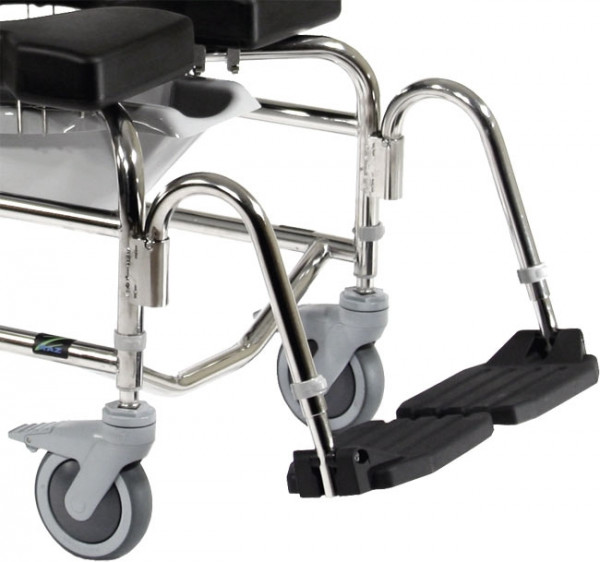

Adjustable Footrests

• removable for transfers and cleaning
• swing in and out easily
• flip-up footplate
• adjust for leg length without tools
• available in regular length 16″-20½” and extended length 18″-22½”

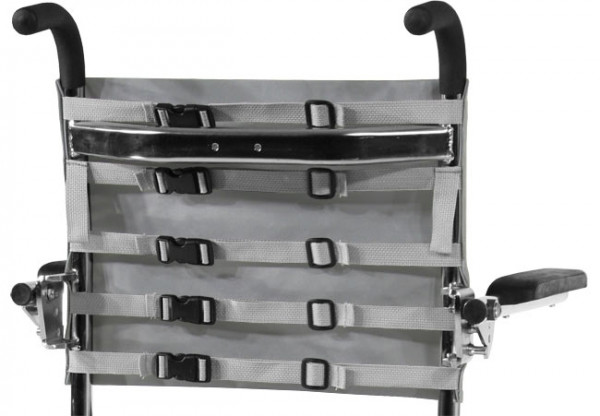

Adjustable Tension Fabric Back

• polyester fabric for durability and comfort against skin
• provides individualized trunk support for optimal positioning and comfort
• removable for machine washing
• available in 17″ and 20″ back heights

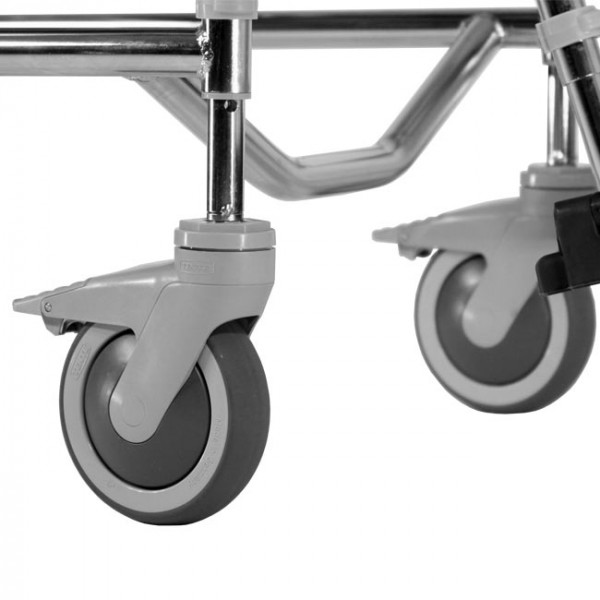

Telescoping Caster Extensions

• provide 4″ of seat height adjustment without the use of tools
• dropped front frame tube improves access over standard toilet bowls

SPECIFICATIONS

WEIGHT CAPACITY -  350 lbs (158 kg)

FRAME WIDTH - (seat and back frame) 18" (46 cm)

OVERALL WIDTH - (with standard armpad) 22.5" (57 cm)

OVERALL LENGTH - (with footrest) 33.75” (86 cm)

SEAT WIDTH - (commode seat) 18” (46 cm)

SEAT DEPTH - (front of back post to front of seat) 16” or 19” (40 or 48 cm)

CLEARANCE HEIGHT UNDER SEAT - 15.5” - 19.5” (39 – 50 cm) with pan brackets 16.25” - 20.25” (41 - 51 cm) without pan bracket

ARMREST HEIGHT ABOVE SEAT - (17” Adjusta-Back) 6.5” - 9.5” in ½” increments (17 - 24 cm) SEAT-TO-FLOOR HEIGHT - 20” - 24” in 1” increments (51 - 61 cm) PRODUCT WEIGHT (with footrests) 38 lbs (17.25 kg)

FRAME AND HARDWARE MATERIAL -  Stainless Steel (Lifetime warranty against corrosion)
